Mac OS

RDA software installation on Mac OS

PreviousWindows OSNextRDA Client

Last updated 3 years ago

Note: Please check the Prerequisites before you proceed.

Run the below commands to verify currently installed RDA prerequisites.

Note: Please make sure the below commands are in the PATH variable in the user's login profile.

docker --version
docker-compose --version
python3 --version
pip3 --version

Step 1: Request software by contacting support@cloudfabrix.com. The following procedure assumes you received the download link.

Download the 'rda-docker-compose-with-ssl.tar' software package.

Step 2: Create a virtual environment using python3

python3 -m venv <name of the environment>
eg.
$ python3 -m venv rda-venv

Step 3: Source virtual env that was created in Step 2 as shown below.

$ cd rda-venv
$ source bin/activate
(rda-venv)$

Step 4: Install docker-compose tool needed to install RDA as shown below

(rda-venv)$  pip3 install docker-compose
(rda-venv)$  docker-compose --version
docker-compose version 1.29.0, build 07737305

Note: Make sure docker-compose is installed properly

Step 5: Extract the 'rda-docker-compose-with-ssl.tar' software package under the user's home directory or some other directory.

tar -xvf rda-docker-compose-with-ssl.tar

Step 3: Run setup.py python script as shown below.

Note: The setup.py creates a directory called 'cfx' under user's home directory for configuration files and exported files. (Ex: /home/<userid>/cfx)

Below are the 'RDA' directory locations and their purpose.

/home/<userid>/cfx/cfxdx/config --> Location of the conf.yml file where many datasource credentials and other settings are configured.

/home/<userid>/cfx/cfxdx/output --> Location of the exported CSV / Excel / JSON files

Step 4: To access 'RDA' interface, open up a browser and enter the URL as https://ipaddress:9998

Note: Access RDA using https://<rda-ip-address>:9998/

The default user name is rdademo and the password is rdademo1234

Note: Default username/password can be changed from docker-compose.yml file under RDA install directory.

Step 4: Accessing RDA Page

Install RDA Datanetwork Components (Optional)

sudo firewall-cmd --add-port=2181/tcp --permanent
sudo firewall-cmd --add-port=9092/tcp --permanent
sudo firewall-cmd --reload

Upgrade RDA

Step 1: Make sure the docker (desktop) environment is intact as per RDA installation prereqs. Also, docker-compose is available to the user (as shown in the below screenshot).

Step 2: Go to the directory where RDA was previously installed.

Step 3: Make sure RDA is up and running. This can be verified by running the docker command as shown in the below screenshot.

Step 4: Go to the directory where RDA was installed and also, docker-compose.yml is available (as shown in the below screenshot).

Step 5: Using the docker-compose command 'docker-compose down' and bring down the RDA instances that are running in your environment as shown in the below screenshot.

Step 6: Using the docker-compose command, upgrade RDA using the 'docker-compose pull' command as shown in the below screenshot.

Step 7: Start RDA upgraded instance using 'docker-compose up -d' as shown in the below screenshot.

Access RDA using https://<IPAddress>:9998 and verify the latest version.

The following steps explain how to install Kafka/Zookeeper components needed for RDA Data network bots. Download file required to install Kafka/Zookeeper and use the below steps to start Kafka/zookeeper docker instances (these instances in turn will be used by RDA runtime) bash# cd /home/macaw/ bash# mkdir -p kafka-zookeeper bash# cd kafka-zookeeper bash# wget <docker-compose-file> bash# <edit the file and add the ipaddress or FQDN of RDA machine> bash# docker-compose pull bash# docker-compose up -d In addition to the above steps, make sure you enable the following ports

docker-compose
Installation

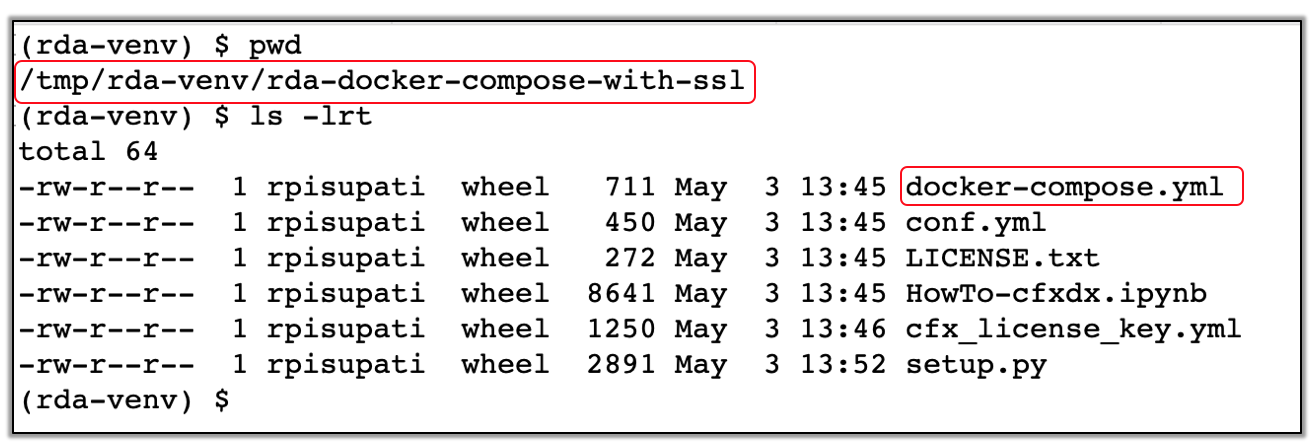

RDA files extracted under rda-venv with the files
Successful installation and setup of RDA on Mac OS
Goto directory where RDA was installed previously
Make sure RDA (cfxdx) is up and running using the command 'docker ps -a' as shown above.
RDA directory with docker-compose.yml file
docker-compose down will delete the old RDA containers (as shown above)
docker-compose pull will download/install latest images from registry (as shown above)
